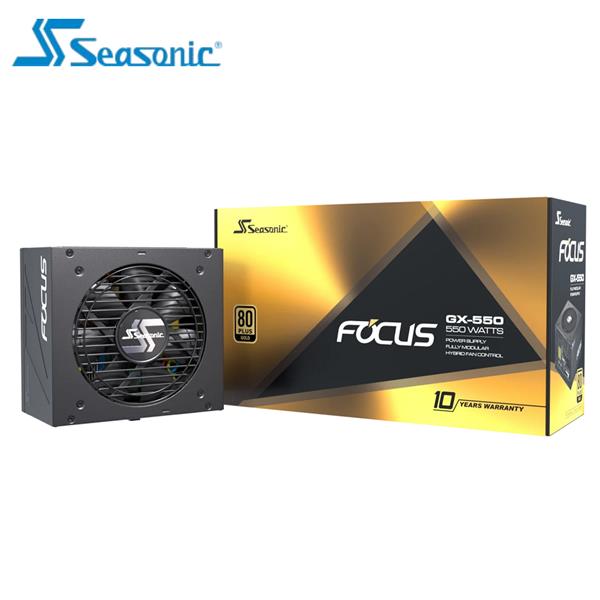

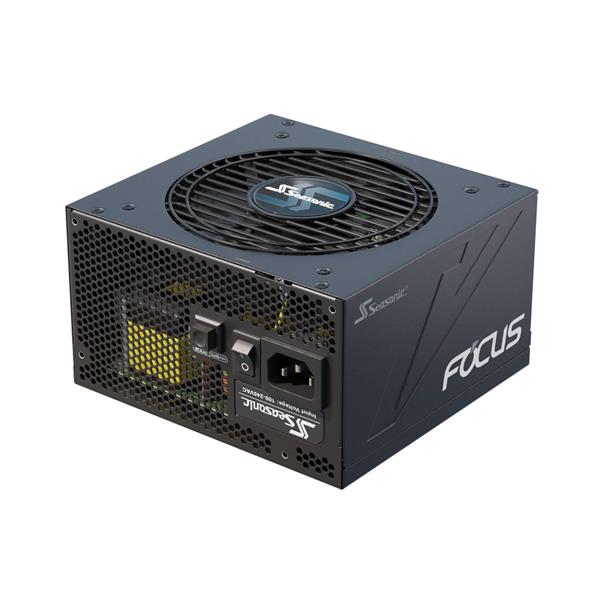

海韻Seasonic FOCUS GX-550W 金牌全模組 電源供應器

售完為止不再到貨

●尺寸:14*15*8.6

●全日系電容+保固10年

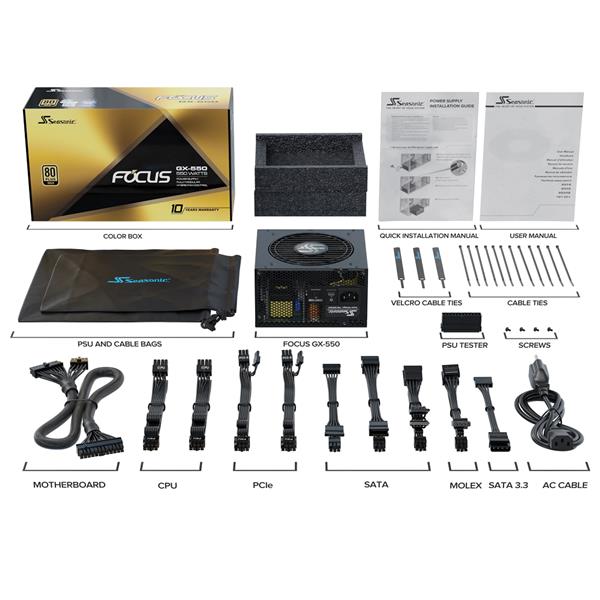

●線材提供

MB(24/20pins)*1+CPU(8/4pins)*2

PCIe(8/6pins)*2+SATA*3

Molex*1+Molex to SATA3.3 Adapter*1

特點概述

• 80 PLUS® Gold認證
• 超小尺寸 - 140毫米深
• 卓越的輸出電壓管控
• 無線連接輸出背板

• S3FC - 無風扇至30 %負載
• 支援多媒體高階顯示卡
• 鍍金高電流端子
• 10年原廠保固

海韻電子的研發團隊運用多年的研究與經驗與打造全新機種，FOCUS GX系列即是其成果結晶，此系列的電源品質堅固，性能傑出。FOCUS GX系列電源不僅配有全模組化線材，140毫米的小體積也讓使用者的機箱選擇更多元。本系列包含80PLUS白金牌與金牌兩種效率

產品規格

FOCUS-GX-550

Technical Specifications
80PLUS® Gold
Cybenetics Efficiency Level TBA
Cybenetics Noise Level TBA
Form Factor Intel ATX 12 V
Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information Fan Size 120 mm
Fan Control S3FC - Fanless until 30 % load
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information Modularity Fully Modular
Cable type Flat black cables
Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 10 Years
Power Output
AC Input Voltage: 100 V - 240 V
Current: 8 - 4 A
Frequency: 50 Hz - 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 20 A 20 A 45 A 0.3 A 3 A
100 W 540 W 3.6 W 15 W
Total continuous power 550 W

線材資訊

Cable type Connector(s) per cable Total length (mm) Number(s) of cable(s) included
MB (24/20 pins) 1 610 1
CPU (8/4 pins) 1 650 2
PCIe (8/6 pins) 2 750 0
PCIe (8/6 pins) 1 750 2
SATA 4 860 1
SATA 4 810 1
SATA 4 760 0
SATA 2 700 0
SATA 2 570 1
SATA 2 470 0
SATA 2 450 0
Molex 3 690 1
Molex 2 470 0
Molex to SATA 3.3 Adapter 2 300 1
Molex to FDD Adapter 1 101 0
