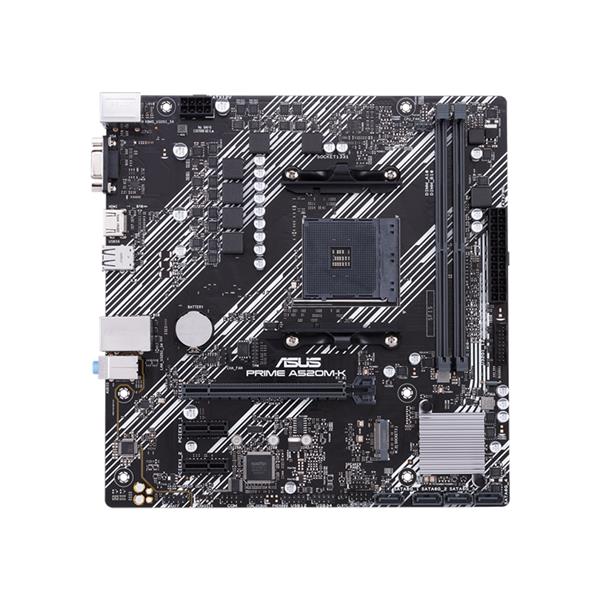

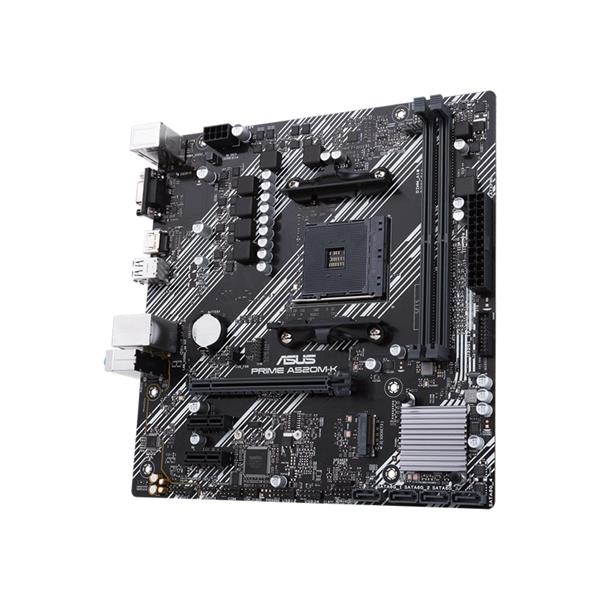

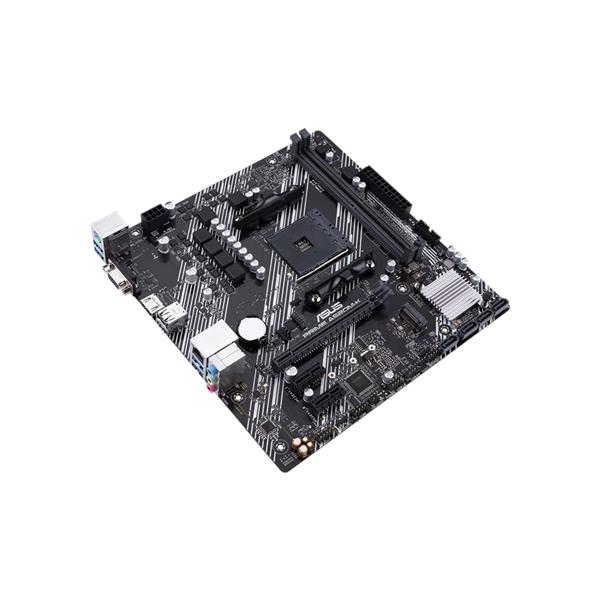

華碩ASUS PRIME A520M-K/CSM 主機板

• AMD A520 晶片組
• AMD AM4 插槽
• 2 x DIMM,雙通道 DDR4 記憶體
• 顯示輸出選項：1 x D-Sub、1 x HDMI 2.1(4K@60HZ)
• mATX 規格：22.6 cm x 22.1 cm

• CPU

  Build in AMD AM4 Socket for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors *
  * Refer to www.asus.com for CPU support list

• Chipset

  AMD A520

• Memory

  2 x DIMM, Max. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
  Dual Channel Memory Architecture
  ECC Memory (ECC mode) support varies by CPU.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * The maximum memory frequency supported varies by processor.

• Graphic

  1 x D-Sub
  1 x HDMI 2.1(4K@60HZ)

• Expansion Slots

  3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
  1 x PCIe 3.0 x16 (x16 mode)
  AMD A520 Chipset
  2 x PCIe 3.0 x1

• Storage

  Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
  3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors :
  1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
  AMD A520 Chipset :
  4 x SATA 6Gb/s port(s),
  Support Raid 0, 1, 10

• LAN

  Realtek RTL8111H 1Gb Ethernet
  ASUS LANGuard

• Audio

  Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC *
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  Audio Feature :
  - Audio Shielding
  - Dedicated audio PCB layers
  * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

• USB Ports

  Rear USB Port ( Total 6 )
  4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  2 x USB 2.0 port(s)(2 x Type-A)
  Front USB Port ( Total 6 )
  2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
  4 x USB 2.0 port(s)(4 x Type-A)

• Software Features

  ASUS Exclusive Software
  Armoury Crate
  AI Suite 3
  - Performance and Power Saving Utility
  TurboV EVO
  EPU
  Digi+ VRM
  Fan Xpert
  - EZ update
  ASUS CPU-Z
  AI Charger
  DAEMON Tools
  Norton Anti-virus software (Free Trial for 60 days)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode

• ASUS Special Features

  ASUS 5X PROTECTION III
  - ASUS DIGI+ VRM
  - ASUS LANGuard
  - ASUS Overvoltage Protection
  - ASUS SafeSlot Core
  - ASUS Stainless-Steel Back I/O
  ASUS Q-Design
  - ASUS Q-DIMM
  - ASUS Q-Slot
  ASUS Thermal Solution
  - Aluminum heatsink design

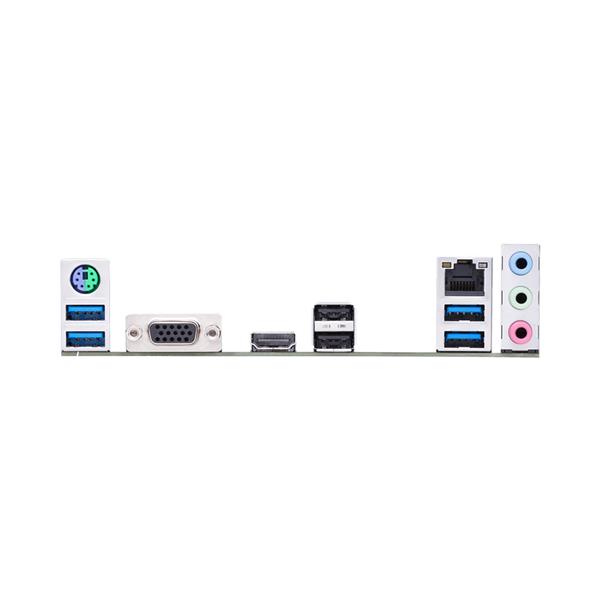

• Back I/O Ports

  1 x PS/2 keyboard/mouse combo port(s)
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  4 x USB 3.2 Gen 1 (blue) Type-A
  2 x USB 2.0
  3 x Audio jack(s)

• Internal I/O Ports

  1 x CPU Fan connector(s)
  1 x Chassis Fan connector(s)
  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x SPI TPM header
  4 x SATA 6Gb/s connector(s)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin EATX 12V Power connectors
  1 x Front panel audio connector(s) (AAFP)
  1 x Clear CMOS jumper(s)
  1 x System panel connector
  1 x COM port header
  1 x Speaker connector

• Accessories

  User's manual
  1 x ACC Express Activation Key Card
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x Supporting DVD
  1 x M.2 SSD screw package(s)

• BIOS

  256 Mb Flash ROM, UEFI AMI BIOS

• Manageability

  WOL by PME, PXE

• Operating System

  Windows® 10 64-bit

• Form Factor

  mATX Form Factor
  8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )

※以上規格資料若有任何錯誤，以原廠所公佈資料為準。
