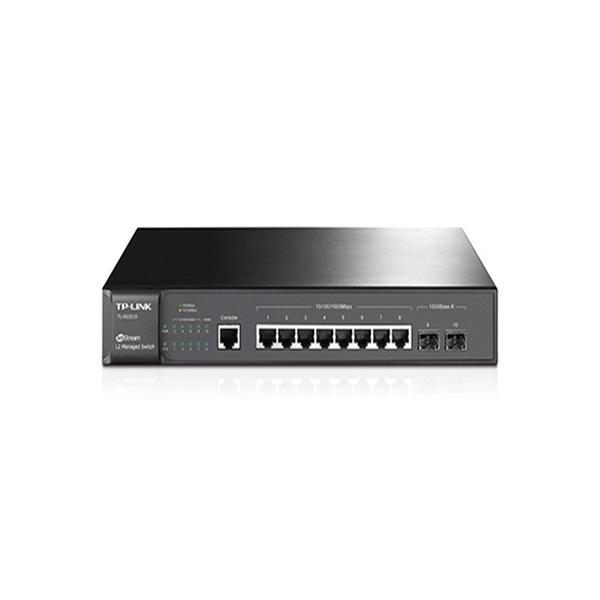

SG3210(UN) 版本:3 JetStream 8埠Gigabit L2+管理型交換器(含2個SFP插槽) (商用)

TL-SG3210

• IP-MAC-Port-VID 繫結、ACL、連接埠安全性、DoS 攻擊防護、風暴控制、DHCP 窺探、802.1X 驗證和 RADIUS 提供健全的安全性策略
• L2/L3/L4 QoS 和 IGMP 窺探將語音和視訊應用程式最佳化
• SNMP、RMON 透過 WEB/CLI 的管理模式，帶來豐富的管理功能

硬體規格
標準與協定 IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z,IEEE 802.3ad,
IEEE 802.3x,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w,IEEE 802.1q,
IEEE 802.1x,IEEE 802.1p
連接介面 8 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
2 1000Mbps SFP Slots
1 Console Port
網路連接線 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
1000BASE-X: MMF, SMF
風扇數量 Fanless
電源供應 100～240VAC, 50/60Hz
功耗 Maximum: 10.7W (220V/50Hz)
尺寸大小(長 x 寬 x 高) 11.6*7.9*1.7in. (294*200*44 mm)
產品效能
頻寬/背板 20Gbps
封包轉發速率 14.9Mpps
MAC位址表 8k
封包緩衝記憶體 4Mb
巨型訊框 10240 Bytes
軟體規格
品質服務(QoS) Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
L2功能 IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
Port isolation
BPDU filtering/guard
TC/Root protect
Loop back detection
802.3x Flow Control
VLAN Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
Port/ MAC/Protocol-based VLAN
GARP/GVRP
Management VLAN configuration
存取控制列表(ACL) L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID;
Time Range Based
安全性 IP-MAC-Port-VID Binding
IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN
DoS Defence
Dynamic ARP inspection (DAI)
SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
管理 Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
DHCP/BOOTP Client,DHCP Snooping,DHCP Option82
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Integrated NDP/NTDP feature
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
其他規格
認證 CE, FCC, RoHS
包裝內容 Switch; Power Cord; Quick Installation Guide;Resource CD; Rackmount Kit; Rubber Feet
系統需求 MicrosoftR WindowsR 8, 7,Vista?, XP or MACR OS, NetWareR, UNIXR or Linux.
環境 Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
