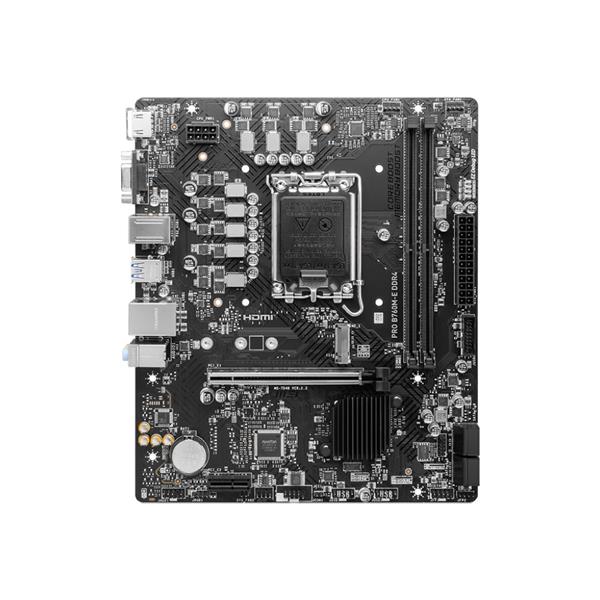

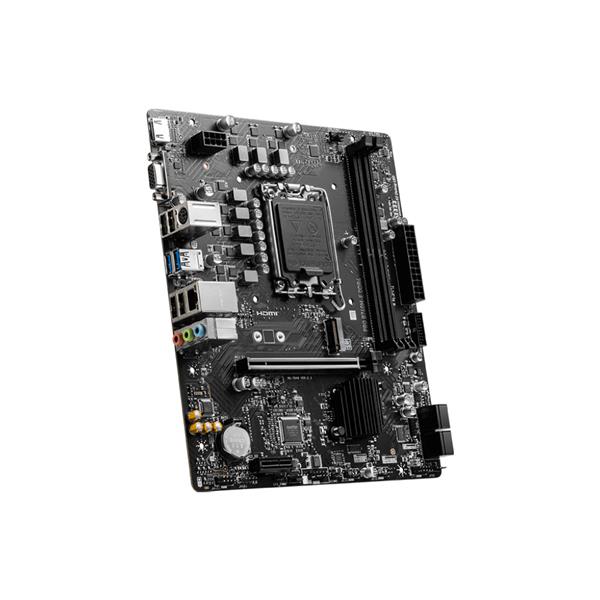

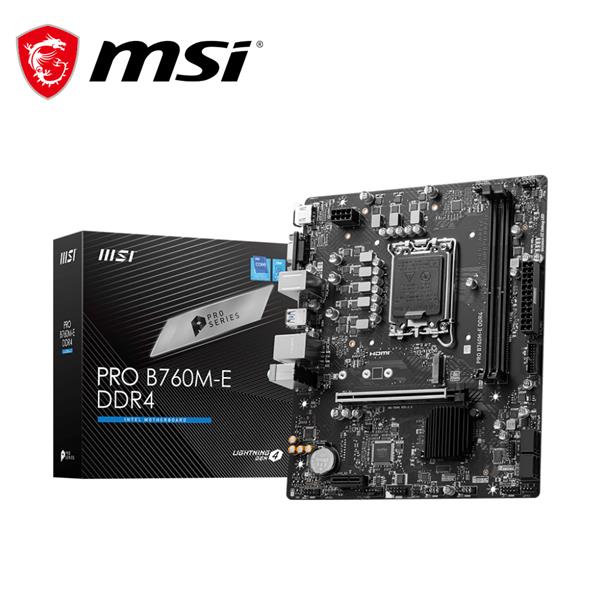

微星MSI PRO B760M-E DDR4 INTEL主機板

型號：PRO B760M-E DDR4

送出詢價不代表訂單成立。我們將依商品、數量與需求，確認價格及供貨狀況後回覆。

其他聯絡方式

電話：02 2761-1882

Email：info@fest.com.tw

LINE 官方帳號：［待確認］

規格

原廠保固	36個月

規格以原廠公告為準；如有疑問請於詢價時註明。

商品說明

支援LGA 1700 腳位的第 12 代 Intel ® Core™、Pentium ® Gold 和 Celeron ®處理器
支援 DDR4 記憶體，雙通道 DDR4 4800+MHz (OC)
Core Boost : 搭配優異配置和數位電源設計，充分支援更多核心，提供更高效能表現
閃電極速遊戲體驗：PCIe 4.0
AUDIO BOOST: 讓您的

【商品規格】

CHIPSET

INTEL B760

CPU SUPPORT

Supports 12th/13th Gen Intel® Core™ Processors, Pentium®
Gold and Celeron® Processors
LGA 1700

MEMORY

2x DDR4, Maximum Memory Capacity 64GB
Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 4600+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

ONBOARD GRAPHICS

1x HDMI™
1x VGA
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT

1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)

STORAGE

1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)

LAN

Realtek® RTL8111H Gigabit LAN

AUDIO

Realtek® ALC897 Codec
7.1-Channel High Definition Audio

INTERNAL I/O

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
1x USB 3.2 Gen1 Type A ports

LED FEATURE

4x EZ Debug LED

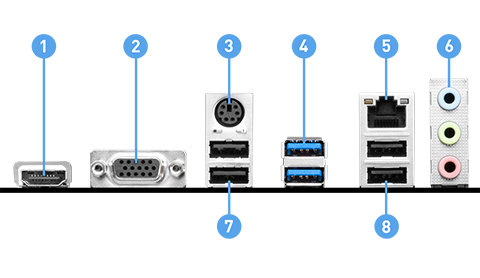

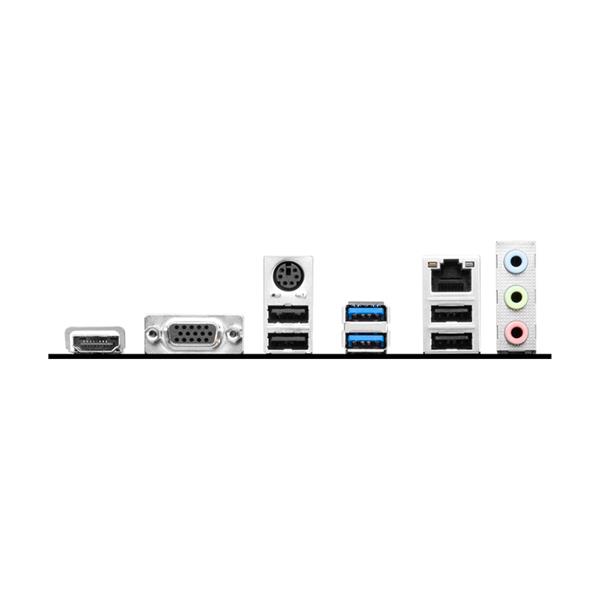

BACK PANEL PORTS
