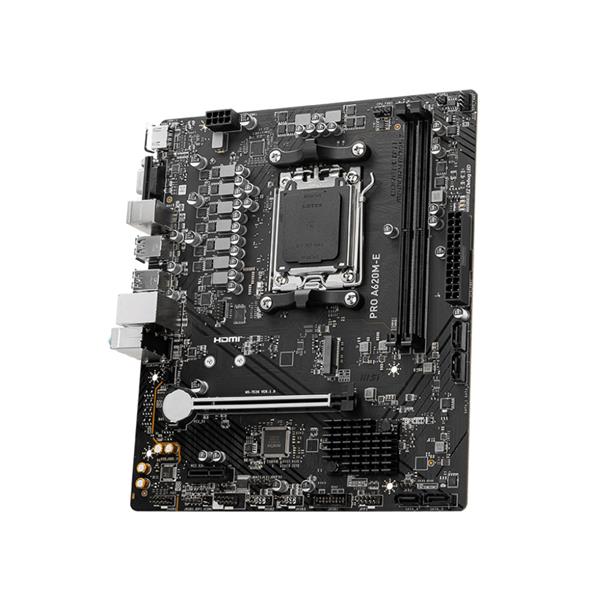

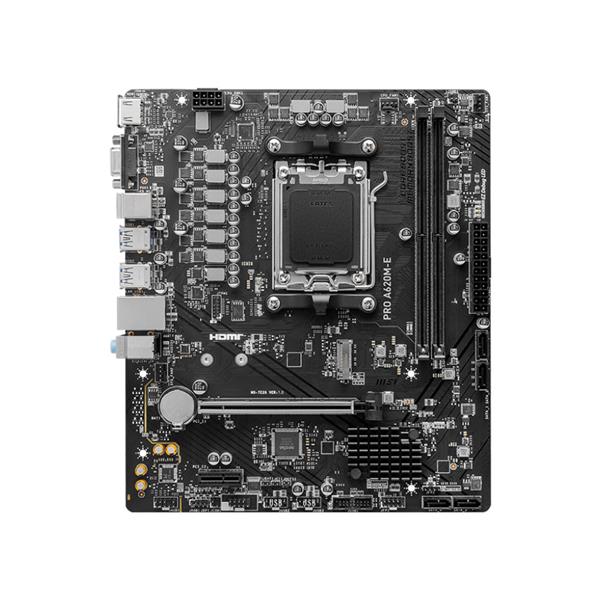

微星MSI PRO A620M-E AMD主機板

• 支援AMD Ryzen™ 7000 Series處理器
• 支援AM5腳位CPU
• 記憶體: 2x DDR5 / 64GB DDR5(max)
• 顯示: HDMI +VGA
• 尺寸: mATX - 21.1 x 24.4 cm

【商品規格】

CHIPSET

AMD A620

CPU SUPPORT

Supports AMD Ryzen™ 7000 Series Desktop Processors

Socket AM5

MEMORY

2x DDR5, Maximum Memory Capacity 96GB

Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 6000+ MHz

• 1DPC 2R Max speed up to 6000+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports AMD EXPO

ONBOARD

GRAPHICS

1x HDMI™

Support HDMITM 2.1, maximum resolution of 4K 60Hz*

1x VGA

Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION

SLOT

1x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

STORAGE

1x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB

2x USB 2.0 (Rear)

4x USB 2.0 (Front)

4x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

LAN

Realtek® RTL8111H Gigabit LAN

AUDIO

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

INTERNAL I/O

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports

LED FEATURE

4x EZ Debug LED

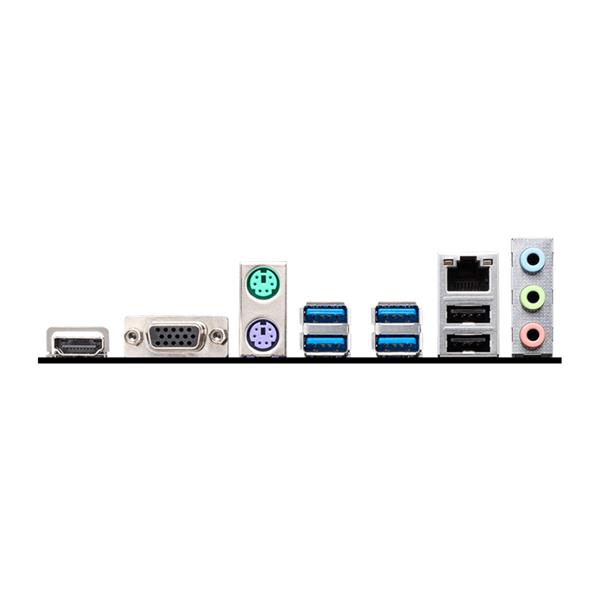

BACK PANEL

PORTS

➊HDMI™

➋VGA

➌Keyboard/Mouse

➍USB 3.2 Gen 1 5Gbps (Type-A)

➎LAN port

➏Audio connectors

➐USB 2.0

OPERATING

SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB

DIMENSION

mATX

211mmx243.84mm

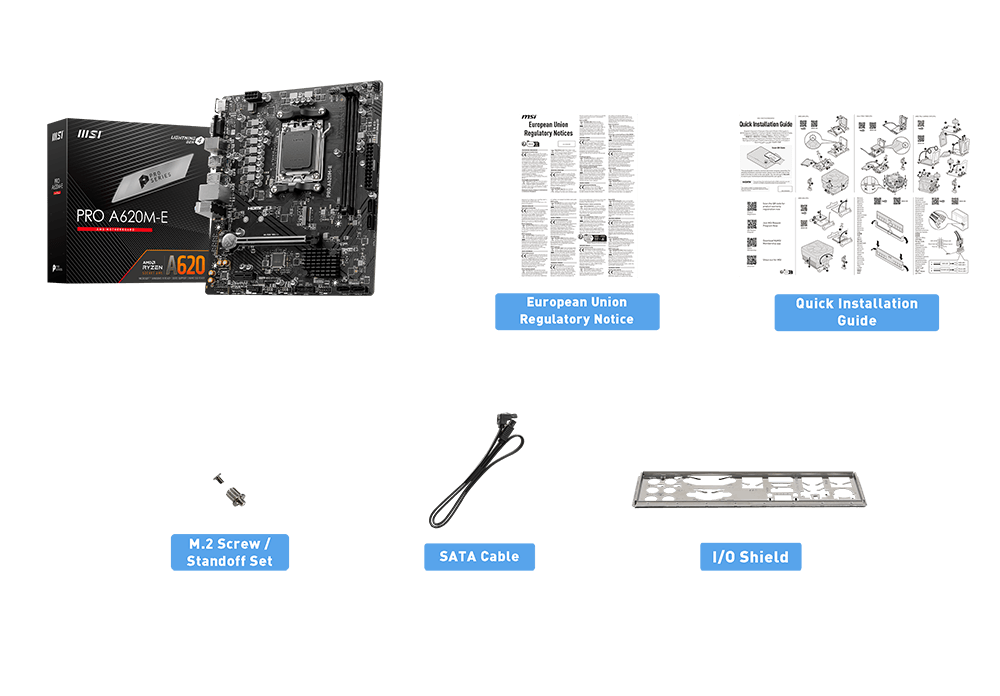

BOX CONTENT

※以上規格資料若有任何錯誤，以原廠所公佈資料為準。
