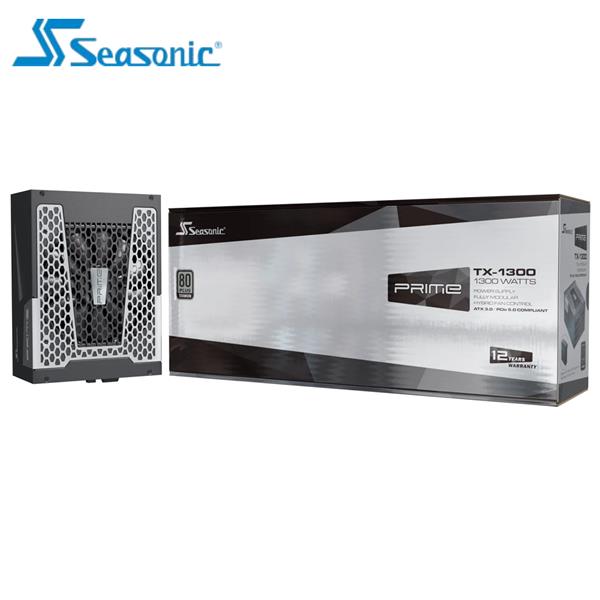

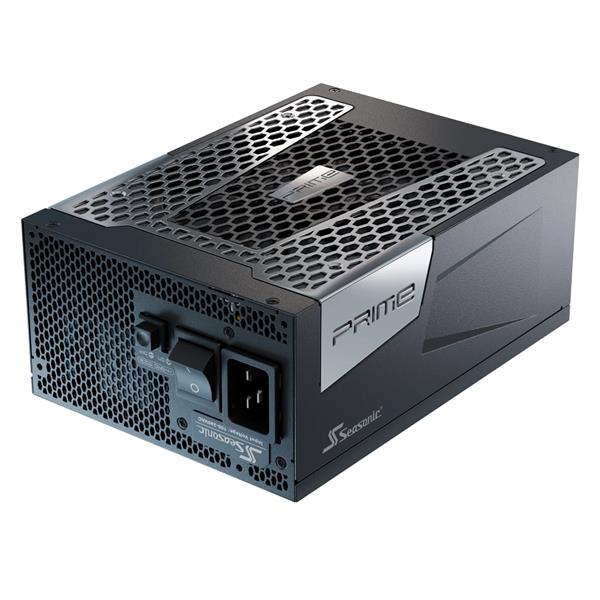

海韻Seasonic ATX3 PRIME TX-1300W 鈦金全模 電源供應器

●尺寸:21*15*8.6

●全日系電容+保固12年

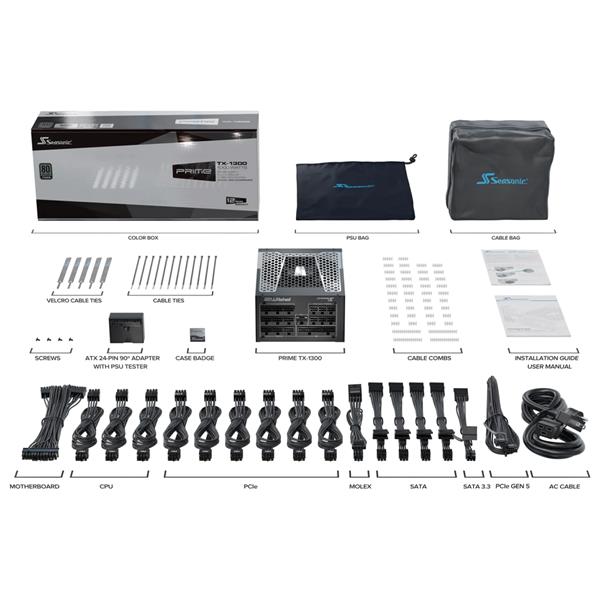

●線材提供

MB(24/20pins)*1+CPU(8/4pins)*3

PCIe(8/6pins)*6+SATA*4+SATA 3.3V*1

Molex*1+12VHPWR(12+4 to 12+4pins)*1

產品規格

PRIME-TX-1300 ATX 3.0

Technical Specifications
80PLUS® Titanium
Cybenetics Efficiency Level A
Cybenetics Noise Level A
Form Factor Intel ATX 12 V
Dimensions 210 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information Fan Size 135 mm
Fan Control Premium Hybrid Fan Control
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information Modularity Fully Modular
Cable type Flat black cables
Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan 150,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 12 Years
Power Output
AC Input Voltage: 100 V - 240 V
Current: 9.5 - 4.5 A
Frequency: 50 Hz - 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 20 A 20 A 62 A 0.3 A 3 A
100 W 744 W 3.6 W 15 W
Total continuous power 750 W

線材資訊

PRIME-TX-1300 ATX 3.0

Cable type Connector(s) per cable Total Length (mm) Number(s) of cable(s) included
MB (24/20 pins) 1 610 1
CPU (8/4 pins) 1 650 2
12VHPWER 1 750 1
PCIe (8/6 pins) 2 750 0
PCIe (8/6 pins) 1 750 6
SATA 4 810 1
SATA 4 860 1
SATA 4 760 0
SATA 2 700 4
SATA 2 570 0
SATA 2 470 0
SATA 2 450 1
Molex 3 690 1
Molex 2 470 1
Molex to SATA 3.3 Adapter 2 300 1
Molex to FDD Adapter 1 101 0
