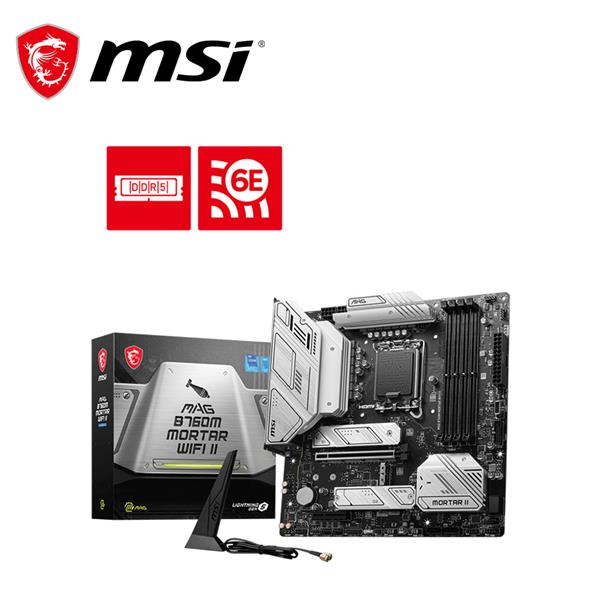

微星MAG B760M MORTAR WIFI II INTEL主機板

• 支援LGA 1700 Socket
• 支援DDR5記憶體 7800+(OC)MHz
• 12+1+1電源設計
• 極速遊戲體驗，PCIe 5.0 slot, Lightning Gen4x4 M.2, USB 3.2 Gen2x2
• 散熱解決方案
• mATX:24.384cmx24.384cm

【商品規格】

CHIPSET

INTEL B760

CPU

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

LGA1700

MEMORY

4x DDR5, Maximum Memory Capacity 192GB

Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7800+ MHz

• 1DPC 2R Max speed up to 6600+ MHz

• 2DPC 1R Max speed up to 6400+ MHz

• 2DPC 2R Max speed up to 5600+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile

ONBOARD GRAPHICS

1x HDMI™

Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*

1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SLOT

1x PCI-E x16 slot

Supports x16/x4

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)

STORAGE

3x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices

4x SATA 6G

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 3.2 Gen1 Type A (Front)

3x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Front)

1x USB 3.2 Gen2x2 Type C (Rear)

LAN

Realtek® 2.5Gbps LAN

WIRELESS LAN & BLUETOOTH

Intel® Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

INTERNAL IO

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

4x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Tuning Controller connector(JDASH)

2x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports

1x USB 3.2 Gen2 Type C ports

1x USB4 card connector (JTBT_U4_1, supports RTD3)

LED FEATURE

4x EZ Debug LED

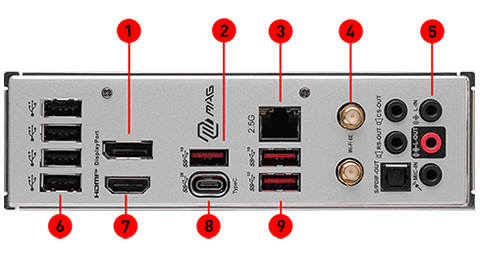

BACK PANEL PORTS

➊DisplayPort 1.4

➋USB 3.2 Gen 2 10Gbps Type-A

➌2.5G LAN Port

➍Wi-Fi / Bluetooth

➎HD Audio Connectors

➏USB 2.0

➐HDMI™ 2.1 Port

➑USB 3.2 Gen 2x2 20Gbps Type-C

➒USB 3.2 Gen 2 10Gbps Type-A

OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB INFO

mATX

243.84mmx243.84mm

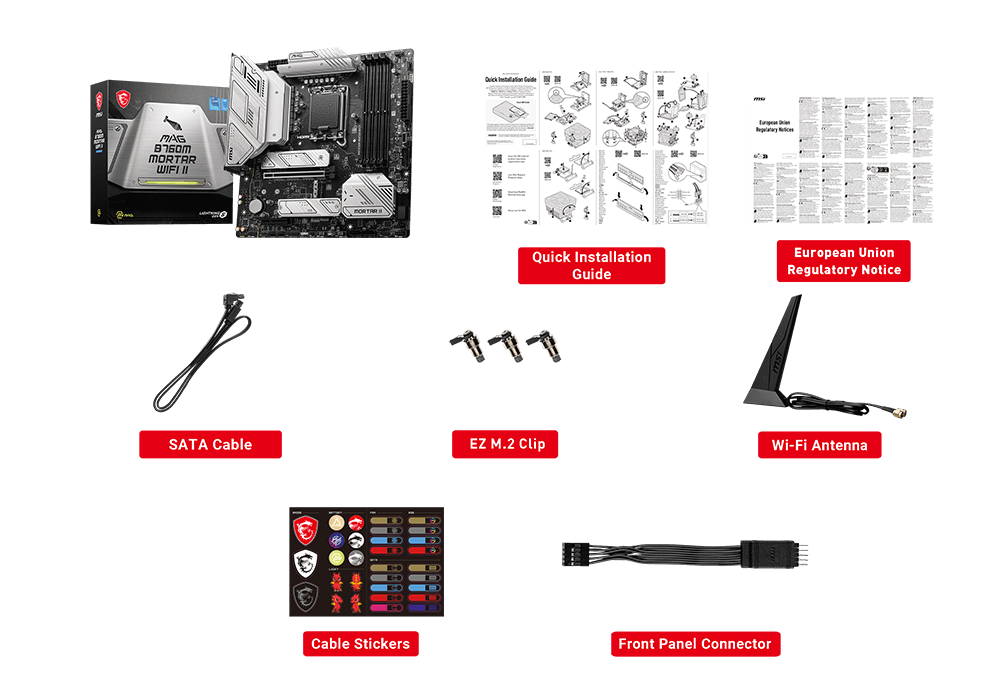

BOX CONTENT

※以上規格資料若有任何錯誤，以原廠所公佈資料為準。
