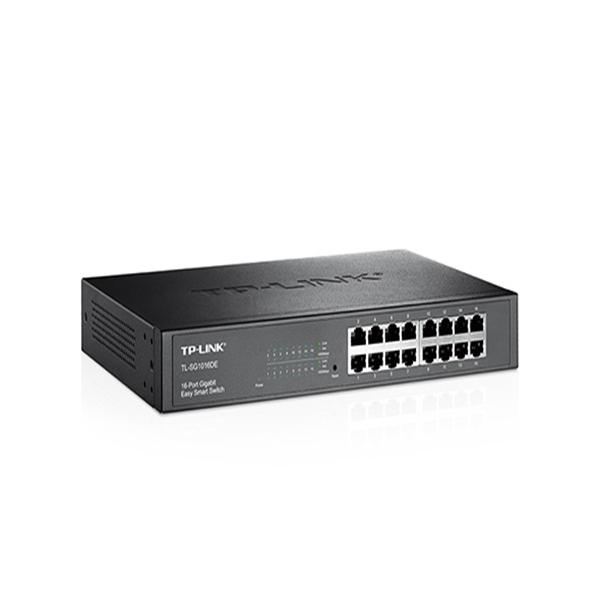

TP-LINK TL-SG1016DE(UN) 版本:7.0 16埠Gigabit簡易智慧型交換器 (商用)

TL-SG1016DE

• 16 10/100/1000Mbps RJ45 ports
• Provides network monitoring, traffic prioritization and VLAN features
• Innovative energy-efficient technology reduces power output by up to 40%
• Simple network set-up on top of plug-and-play connectivity

• Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Power Supply 100-240VAC, 50/60Hz
Dimensions (W X D X H) 11.6*7.1*1.7 in. (294*180*44 mm)
Power Consumption Maximum: 12.55W (220V/50Hz)
PERFORMANCE
Switching Capacity 32Gbps
Packet Forwarding Rate 23.8Mpps
MAC Address Table 8K
Packet Buffer Memory 512KB
Jumbo Frame 10240Bytes
SOFTWARE FEATURES
Quality of Service Support Port Based/802.1p Based priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG1016DE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
System Requirements MicrosoftR WindowsR 98SE, NT, 2000, XP, Vista? Windows 7 or Windows 8, MACR OS, NetWareR, UNIXR or Linux.
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
