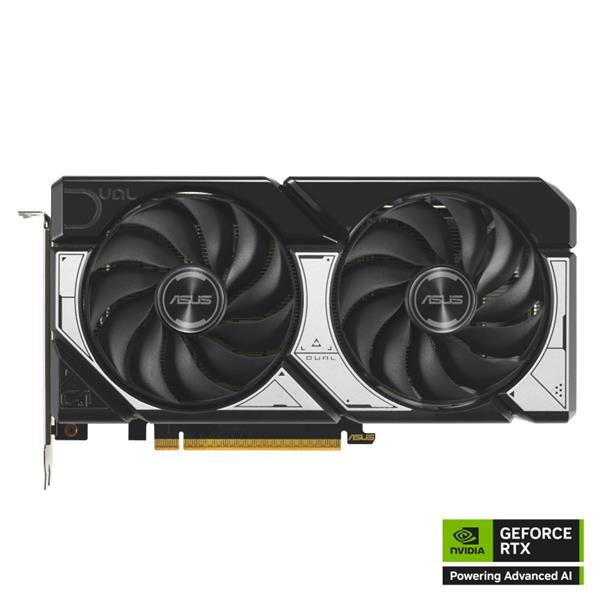

華碩ASUS DUAL-RTX5060-O8G 顯示卡

NVIDIA RTX 5060/DPx3/HDMIx1/8G

型號

DUAL-RTX5060-O8G

繪圖核心

NVIDIA® GeForce RTX™ 5060

AI Performance

623 TOPs

匯流排規格

PCI Express 5.0

OpenGL

OpenGL®4.6

記憶體形式

8GB GDDR7

GPU 時脈

OC mode: 2565MHz
Default mode: 2535MHz (Boost Clock)

CUDA 核心數

3840

Memory Speed

28 Gbps

Memory Interface

128 位元

解析度

Digital Max Resolution 7680 x 4320

介面

Yes x 1 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1b)
支援HDCP : 有 (2.3)

最多可支援顯示器數量

4

NVlink/ Crossfire Support

無

配件

1 x Speedsetup Manual
1 x Thank You Card

軟體

ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

產品尺寸

228 x 123 x 50 mm
8.98 x 4.84 x 1.97 inches

Recommended PSU

550W

電源連接器

1 x 8-pin

Slot

2.5 Slot

SFF Ready

Compatible

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
