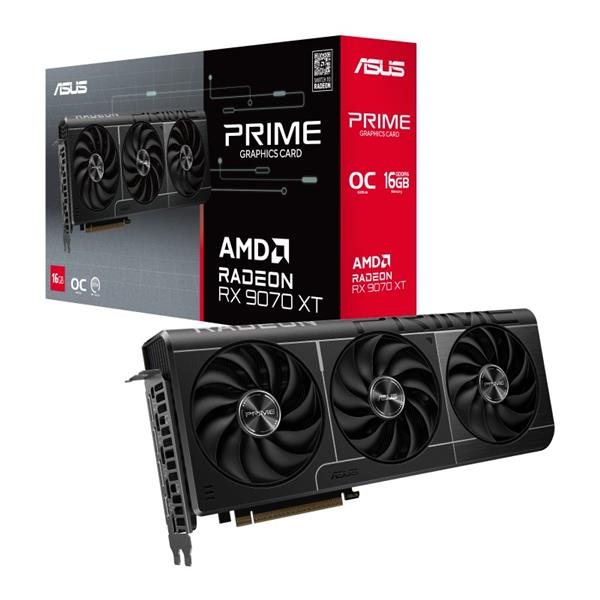

華碩ASUS PRIME-RX9070XT-O16G 顯示卡

AMD Radeon RX 9070 XT/DPx3/HDMIx1/16G

型號

PRIME-RX9070XT-O16G

繪圖核心

AMD Radeon™ RX 9070 XT

匯流排規格

PCI Express 5.0

OpenGL

OpenGL®4.6

記憶體形式

16GB GDDR6

GPU 時脈

OC mode(GPU Tweak III): up to 3030 MHz (Boost Clock)/up to 2480 MHz (Game Clock)
Default mode: up to 3010 MHz (Boost Clock)/up to 2460 MHz (Game Clock)

Stream Processors

4096

Memory Speed

20 Gbps?

Memory Interface

256 位元

解析度

Digital Max Resolution 7680 x 4320

介面

Yes x 1 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1a)
支援HDCP : 有 (2.3)

最多可支援顯示器數量

4

NVlink/ Crossfire Support

無

配件

1 x Thank you card
1 x Speedsetup Manual

軟體

ASUS GPU Tweak III & Drivers: please download all software from the support site.

產品尺寸

312 x 130 x 50 mm
12.3 x 5.1 x 2.0 inch

Recommended PSU

750W

電源連接器

3 x 8-pin

Slot

2.5 Slot

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
