ThinkBook 14 G7 IML

商品特色

Model Configurations

PERFORMANCE
Processor

Intel® Core Ultra 7 155H, 16C (6P + 8E + 2LPE) / 22T, Max Turbo up to 4.8GHz, 24MB

AI PC Category

AI PC

NPU

Integrated Intel® AI Boost, up to 11 TOPS

Graphics

Integrated Intel® Arc™ Graphics Functions as Intel Graphics

Chipset

Intel® SoC Platform

Memory

1x 16GB SO-DIMM DDR5-5600

Memory Slots

Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory

Up to 64GB DDR5-5600

Storage

512GB SSD M.2 2242 PCIe® 4.0x4 NVMe®

Storage Slot

Two M.2 2280 PCIe® 4.0 x4 slots

Max Storage Support

Up to two drives, 2x M.2 SSD • M.2 2280 SSD up to 2TB each

Optical

None

Card Reader

SD Card Reader

Audio Chip

High Definition (HD) Audio, Realtek® ALC3287 codec

Speakers

Stereo speakers, 2W x2, Dolby Audio™

Microphone

2x, Array

Camera

HD 720p with Privacy Shutter

Battery

60Wh

Power Adapter

65W USB-C® (3-pin)

Special Features

Modern Standby

DESIGN
Display

14" WUXGA (1920x1200) IPS 300nits Anti-glare, 45% NTSC, 60Hz

Touchscreen

None

Screen-to-Body Ratio

90%

Pen

Pen Not Supported

Keyboard

Non-backlit, Traditional Chinese

Touchpad

Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)

Dimensions (WxDxH)

313.5 x 224 x 16.9 mm (12.34 x 8.82 x 0.67 inches)

Weight

Starting at 1.38 kg (3.04 lbs)

Case Color

Arctic Grey

Case Material

Aluminium (Top), Aluminium (Bottom)

Surface Treatment

Anodizing Sandblasting

SOFTWARE
Operating System

Windows® 11 Home, Traditional Chinese / Simplified Chinese / English

Bundled Software

Office Trial

CONNECTIVITY
WLAN + Bluetooth

Intel® Wi-Fi® 6 AX203, 802.11ax 2x2 + BT5.2

WWAN

Non-WWAN

Ethernet

100/1000M (RJ-45)

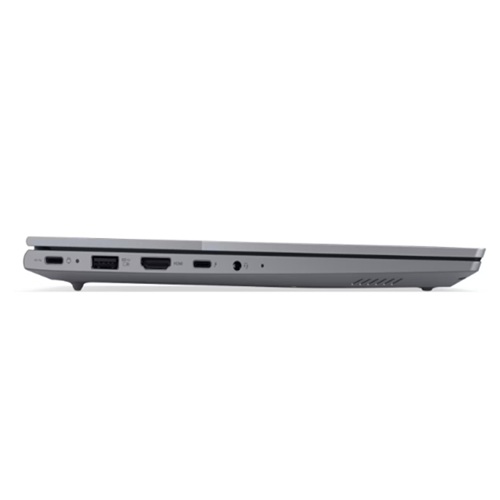

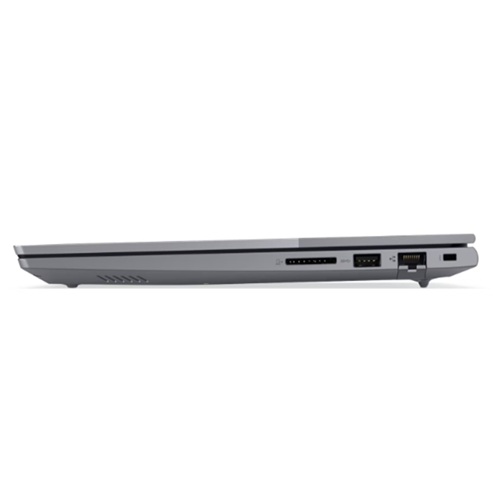

Standard Ports

• 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
• 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
• 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 3.0 and DisplayPort™ 1.4
• 1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
• 1x HDMI® 2.1, up to 4K/60Hz
• 1x Headphone / microphone combo jack (3.5mm)
• 1x Ethernet (RJ-45)
• 1x SD card reader

Docking

Various docking solutions supported via Thunderbolt™ or USB-C®. For more compatible docking solutions, please visit Docking for ThinkBook® 14 G7 IML

SECURITY & PRIVACY
Security Chip

Firmware TPM 2.0 Enabled

Physical Locks

Kensington® Nano Security Slot, 2.5 x 6 mm

Fingerprint Reader

Touch Style, Match-on-Chip, Integrated in Power Button

Other Security

Camera privacy shutter

MANAGEABILITY
System Management

Non-vPro®

SERVICE
Base Warranty

1-year, Courier or Carry-in

Included Upgrade

1Y Premier Support Upgrade from 1Y Courier/Carry-in

ACCESSORIES
Bundled Accessories

None

CERTIFICATIONS
Green Certifications

• ENERGY STAR® 8.0
• EPEAT™ Gold Registered
• ErP Lot 6/26
• RoHS compliant
• TCO Certified 9.0

Mil-Spec Test

MIL-STD-810H military test passed

Other Certifications

TÜV Rheinland® Low Blue Light (Software Solution)

MODEL INFORMATION
Model

21MRA00HTW

Machine Type

21MR

Region

HTK

Country/Region

Taiwan, China

TopSeller

No

EAN / UPC / JAN

198153601905

Announce Date

2024-02-05

End of Support

2030-09-26
