ThinkCentre neo 50q Gen 4

商品特色

Model Configurations

PERFORMANCE
Processor

Intel® Core i5-13420H, 8C (4P + 4E) / 12T, P-core 2.1 / 4.6GHz, E-core 1.5 / 3.4GHz, 12MB

Graphics

Integrated Intel® UHD Graphics

Chipset

Intel® SoC Platform

Memory

1x 16GB SO-DIMM DDR4-3200

Memory Slots

Two DDR4 SO-DIMM slots, dual-channel capable

Max Memory

Up to 32GB DDR4-3200

Storage

512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0

Max Storage Support

Up to two drives, 1x 2.5" HDD + 1x M.2 SSD • 2.5" HDD up to 1TB • M.2 SSD up to 1TB

Card Reader

No card reader

Optical

None

Audio Chip

High Definition (HD) Audio, Realtek® ALC256 codec

Speakers

2Wx1

Microphone

No microphone

Power Supply

65W 89% Adapter

DESIGN
Keyboard

USB Calliope Keyboard, Black, Traditional Chinese / English

Mouse

USB Calliope Mouse, Black

Optional Bay

None

Expansion Slots

Two M.2 slots (one for WLAN, one for SSD)

Case Color

Black

System Fan

1x System Fan

Stand

None

Adapter Cage

None

Toolless Chassis Screw

None

Mounting

None

Pen

Pen Not Supported

Form Factor

Tiny (1L)

Dimensions (WxDxH)

179 x 182.9 x 36.5 mm (7.05 x 7.2 x 1.44 inches)

Weight

Around 1.11 kg (2.45 lbs)

CONNECTIVITY
WLAN + Bluetooth

Realtek® Wi-Fi® 6 RTL8852BE, 802.11ax 2x2 + BT5.3

WWAN

Non-WWAN

Ethernet

Integrated 100/1000M

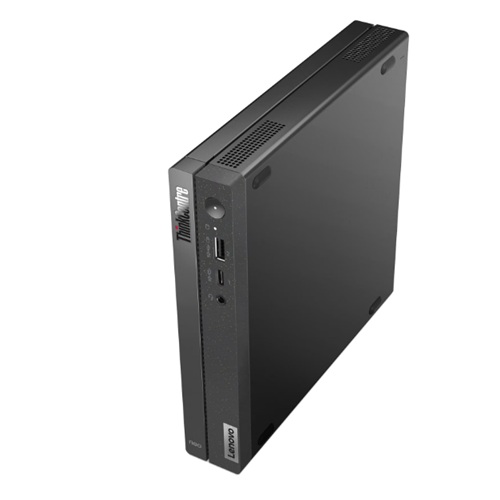

Front Ports

• 1x USB-C® 3.2 Gen 2 (support data transfer and 5V@0.9A charging)
• 1x USB 3.2 Gen 2 (Always On and 5V@2.1A charging)
• 1x headphone / microphone combo jack (3.5mm)

Optional Front Ports (configured)

None

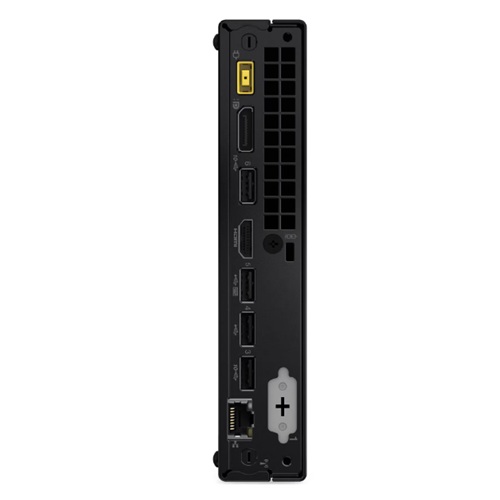

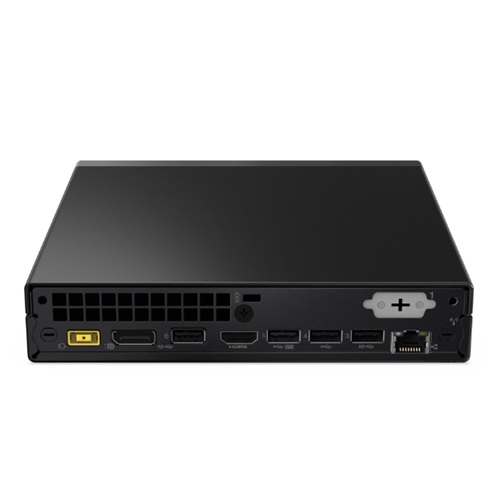

Rear Ports

• 2x USB 2.0
• 2x USB 3.2 Gen 2
• 1x HDMI® 2.1 TMDS
• 1x DisplayPort™ 1.4
• 1x Ethernet (RJ-45)

Optional Rear Ports (configured)

None

Monitor Cable

None

SECURITY & PRIVACY
Security Chip

Firmware TPM 2.0 integrated in SoC

Physical Locks

Kensington® Security Slot™, 3 x 7 mm

Chassis Intrusion Switch

Chassis Intrusion Switch

MANAGEABILITY
System Management

Non-vPro®

SERVICE
Base Warranty

1-year, Onsite

Included Upgrade

3Y Onsite upgrade from 1Y Onsite

CERTIFICATIONS
Green Certifications

• ENERGY STAR® 8.0
• EPEAT™ Gold Registered
• ErP Lot 3/7
• RoHS compliant
• TCO Certified 9.0

Other Certifications

TÜV Rheinland® Ultra Low Noise

SOFTWARE
Operating System

Windows® 11 Pro, Traditional Chinese / English

Bundled Software

None

ACCESSORIES
Bundled Accessories

-

MODEL INFORMATION
Product

ThinKCentre neo 50q Gen 4

Model

12LMS2MS00

Machine Type

12LM

Region

HTK

Country/Region

Taiwan, China

TopSeller

No

EAN / UPC / JAN

198155734779

Announce Date

2024-09-02

End of Support

2029-11-18

保固說明

保固一年,請洽詢原廠服務:0800-000-702

無新品換貨
