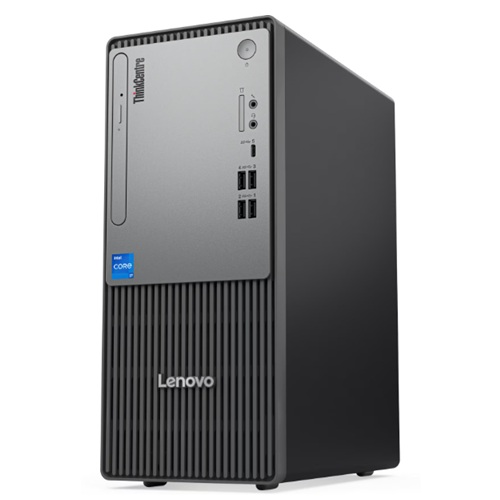

ThinkCentre neo 50t Gen 5

商品特色

Model Configurations

PERFORMANCE
Processor

Intel® Core i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB

Graphics

Integrated Intel® UHD Graphics 770

Chipset

Intel® B760 Chipset

Memory

1x 16GB UDIMM DDR5-5600

Memory Slots

Two DDR5 UDIMM slots, dual-channel capable

Max Memory

Up to 64GB DDR5-5600

Storage

1TB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0

Max Storage Support

Up to three drives, 1x 3.5"HDD + 1x 2.5"HDD + 1x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 1TB • 2.5" HDD bay is only for customer self upgrade

Card Reader

None

Optical

None

Audio Chip

High Definition (HD) Audio, Realtek® ALC623-CG codec

Speakers

2Wx1

Power Supply

260W 90%

DESIGN
Keyboard

USB Traditional Keyboard, Black, Traditional Chinese / English

Mouse

USB Calliope Mouse, Black

Optional Bay

None

Expansion Slots

• One PCIe® 3.0 x16, full-height, length ≤ 233.6mm, height ≤ 117.5mm
• One PCIe® 3.0 x1, full-height, (length ≤ 185mm, height ≤ 100mm) or (length ≤ 118mm, height ≤ 110mm)
• Two M.2 slots (one for WLAN, one for SSD)

Case Color

Black

System Fan

None

Toolless Chassis Screw

None

Pen

Pen Not Supported

Form Factor

Tower (13.6L)

Dimensions (WxDxH)

145 x 294 x 340 mm (5.71x 11.57 x 13.39 inches)

Weight

Around 5.6 kg (12.35 lbs)

CONNECTIVITY
WLAN + Bluetooth

None

WWAN

Non-WWAN

Ethernet

RTL8111K, 1x RJ-45

Front Ports

• 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with data transfer and 15W charging
• 4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
• 1x headphone / microphone combo jack (3.5mm)
• 1x microphone (3.5mm)

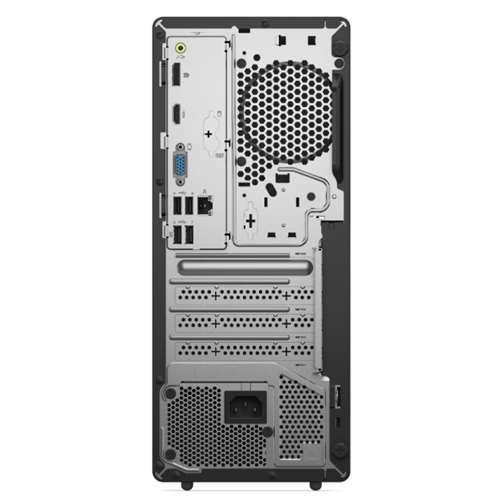

Rear Ports

• 4x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On
• 1x HDMI® 2.1 TMDS
• 1x DisplayPort™ 1.4a (HBR2)
• 1x VGA
• 1x Ethernet (RJ-45)
• 1x line-out (3.5mm)

Optional Rear Ports (configured)

None

SECURITY & PRIVACY
Security Chip

Discrete TPM 2.0, TCG certified

Physical Locks

• Kensington® Security Slot™
• Padlock Loop

Smart Cable Clip

None

Chassis Intrusion Switch

None

MANAGEABILITY
System Management

None

SERVICE
Base Warranty

1-year, Onsite

Included Upgrade

3Y Onsite upgrade from 1Y Onsite

CERTIFICATIONS
Green Certifications

• RoHS / WEEE / REACH
• TCO Certified 9.0

Other Certifications

-

SOFTWARE
Operating System

Windows® 11 Pro, Traditional Chinese / English

Bundled Software

None

ACCESSORIES
Bundled Accessories

None

MODEL INFORMATION
Model

12UDS03700

Machine Type

12UD

Region

HTK

Country/Region

Taiwan, China

TopSeller

No

EAN / UPC / JAN

198155734694

Announce Date

2024-09-17

End of Support

2031-02-15
