鴻達科技
詢價單
ThinkCentre neo 50t Gen 5
  • ThinkCentre neo 50t Gen 5
  • ThinkCentre neo 50t Gen 5
  • ThinkCentre neo 50t Gen 5
  • ThinkCentre neo 50t Gen 5
Lenovo

ThinkCentre neo 50t Gen 5

型號：12UDS03M00
價格請洽詢
規格：標準規格
立即詢價此商品

送出詢價不代表訂單成立。我們將依商品、數量與需求，確認價格及供貨狀況後回覆。

其他聯絡方式
電話：02 2761-1882
Email：［待確認］
LINE 官方帳號：［待確認］

規格

尺寸145 x 294 x 340 毫米（5.71 x 11.57 x 13.39 英吋）（寬x深x高
作業系統Windows 11 Pro, Traditional Chinese / English
其它基本保固1年
重量約 5.6 公斤（12.35 磅）
音效高清 (HD) 音訊、Realtek ALC623-CG 編解碼器
記憶體1x 16GB UDIMM DDR5-4800
處理器CPUIntel Core i5-14400, 10C (6P + 4E) / 16T, P-core 2.5 / 4.7GHz, E-core 1.8 / 3.5GHz, 20MB
晶片組Intel B760 Chipset
硬碟256GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0 + 1TB HDD 7200rpm 3.5英寸
電源180W 85%
電腦滑鼠USB Calliope 滑鼠，黑色
電腦鍵盤USB繁體鍵盤，黑色，繁體中文/英文
網路RTL8111K，1個RJ-45(乙太網路)
擴充槽1個PCIeR 3.0 x16，全高，長度?233.6mm，高度?117.5mm 1 個 PCIeR 3.0 x1，全高，（長度 ? 185 毫米，高度 ? 100 毫米）或（長度 ? 118 毫米，高度 ? 110 毫米） 兩個 M.2 插槽（一個用於 WLAN，一個用於 SSD）
顯示卡 / 繪圖支援Integrated Intel UHD Graphics 730

規格以原廠公告為準；如有疑問請於詢價時註明。

商品說明

品名：Neo50t/i5-14400/16G/256G+1T/WIN11P/3Y

商品特色

Model Configurations

PERFORMANCE
Processor

Intel® Core i5-14400, 10C (6P + 4E) / 16T, P-core 2.5 / 4.7GHz, E-core 1.8 / 3.5GHz, 20MB

Graphics

Integrated Intel® UHD Graphics 730

Chipset

Intel® B760 Chipset

Memory

1x 16GB UDIMM DDR5-4800

Memory Slots

Two DDR5 UDIMM slots, dual-channel capable

Max Memory

Up to 64GB DDR5-5600

Storage

256GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0 + 1TB HDD 7200rpm 3.5"

Max Storage Support

Up to three drives, 1x 3.5"HDD + 1x 2.5"HDD + 1x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 1TB • 2.5" HDD bay is only for customer self upgrade

Card Reader

None

Optical

None

Audio Chip

High Definition (HD) Audio, Realtek® ALC623-CG codec

Speakers

2Wx1

Power Supply

180W 85%

DESIGN
Keyboard

USB Traditional Keyboard, Black, Traditional Chinese / English

Mouse

USB Calliope Mouse, Black

Optional Bay

None

Expansion Slots
  • One PCIe® 3.0 x16, full-height, length ≤ 233.6mm, height ≤ 117.5mm
  • One PCIe® 3.0 x1, full-height, (length ≤ 185mm, height ≤ 100mm) or (length ≤ 118mm, height ≤ 110mm)
  • Two M.2 slots (one for WLAN, one for SSD)
Case Color

Black

System Fan

None

Toolless Chassis Screw

None

Pen

Pen Not Supported

Form Factor

Tower (13.6L)

Dimensions (WxDxH)

145 x 294 x 340 mm (5.71x 11.57 x 13.39 inches)

Weight

Around 5.6 kg (12.35 lbs)

CONNECTIVITY
WLAN + Bluetooth

None

WWAN

Non-WWAN

Ethernet

RTL8111K, 1x RJ-45

Front Ports
  • 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with data transfer and 15W charging
  • 4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
  • 1x headphone / microphone combo jack (3.5mm)
  • 1x microphone (3.5mm)

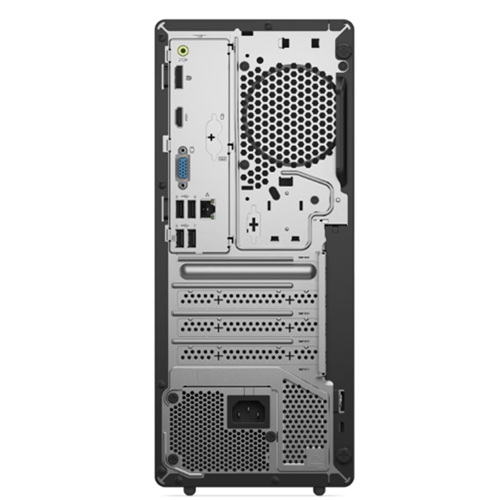

Rear Ports
  • 4x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On
  • 1x HDMI® 2.1 TMDS
  • 1x DisplayPort™ 1.4a (HBR2)
  • 1x VGA
  • 1x Ethernet (RJ-45)
  • 1x line-out (3.5mm)
Optional Rear Ports (configured)

None

SECURITY & PRIVACY
Security Chip

Discrete TPM 2.0, TCG certified

Physical Locks
  • Kensington® Security Slot™
  • Padlock Loop
Smart Cable Clip

None

Chassis Intrusion Switch

None

MANAGEABILITY
System Management

None

SERVICE
Base Warranty

1-year, Onsite

Included Upgrade

3Y Onsite upgrade from 1Y Onsite

CERTIFICATIONS
Green Certifications
  • RoHS / WEEE / REACH
  • TCO Certified 9.0
Other Certifications

-

SOFTWARE
Operating System

Windows® 11 Pro, Traditional Chinese / English

Bundled Software

None

ACCESSORIES
Bundled Accessories

None

MODEL INFORMATION
Model

12UDS03M00

Machine Type

12UD

Region

HTK

Country/Region

Taiwan, China

TopSeller

No

EAN / UPC / JAN

198155734731

Announce Date

2024-09-17

End of Support

2031-02-15

保固說明

保固三年,請洽詢原廠服務:0800-000-702

無新品換貨
